LS2088a issd mode problem

[Daejun]

Hello,
I am using DFC LS2088a version. issd mode is not working with images from this github.
To make clearly, I checked accessibility of NAND dimm in the DFC using chipwise_app.
The chipwise_app can be found from this url.
https://github.com/DFC-OpenSource/DFC-sdk/tree/LS2088_iSSD/FPGA_Source_Code/nand_dimm_test/Application
I upgraded FPGA image to st5_a3_03_05_00.rpd from this url.
https://github.com/DFC-OpenSource/DFC-sdk/tree/LS2088_iSSD/FPGA_Source_Code/nand_dimm_test/A3/BIN

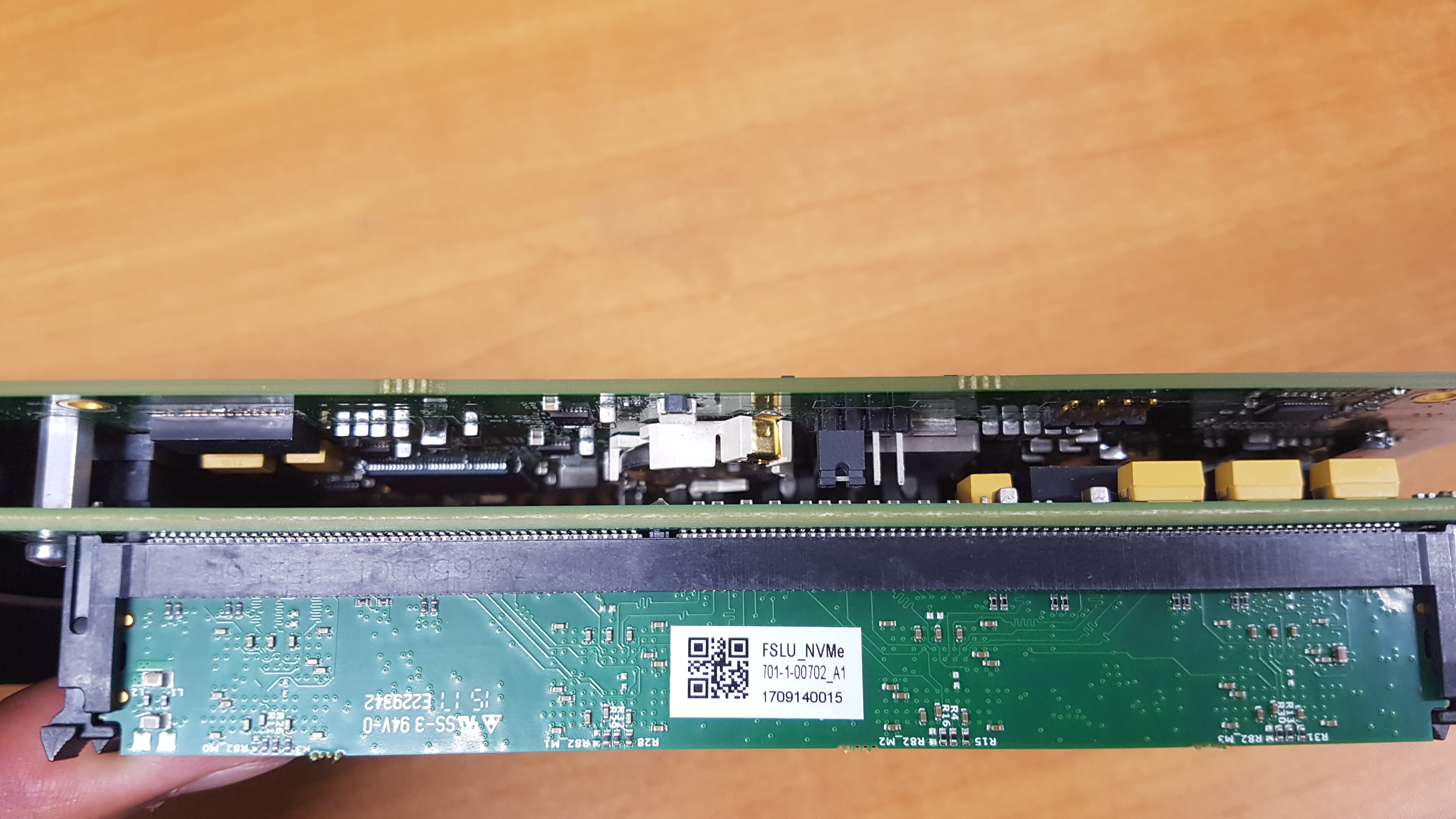

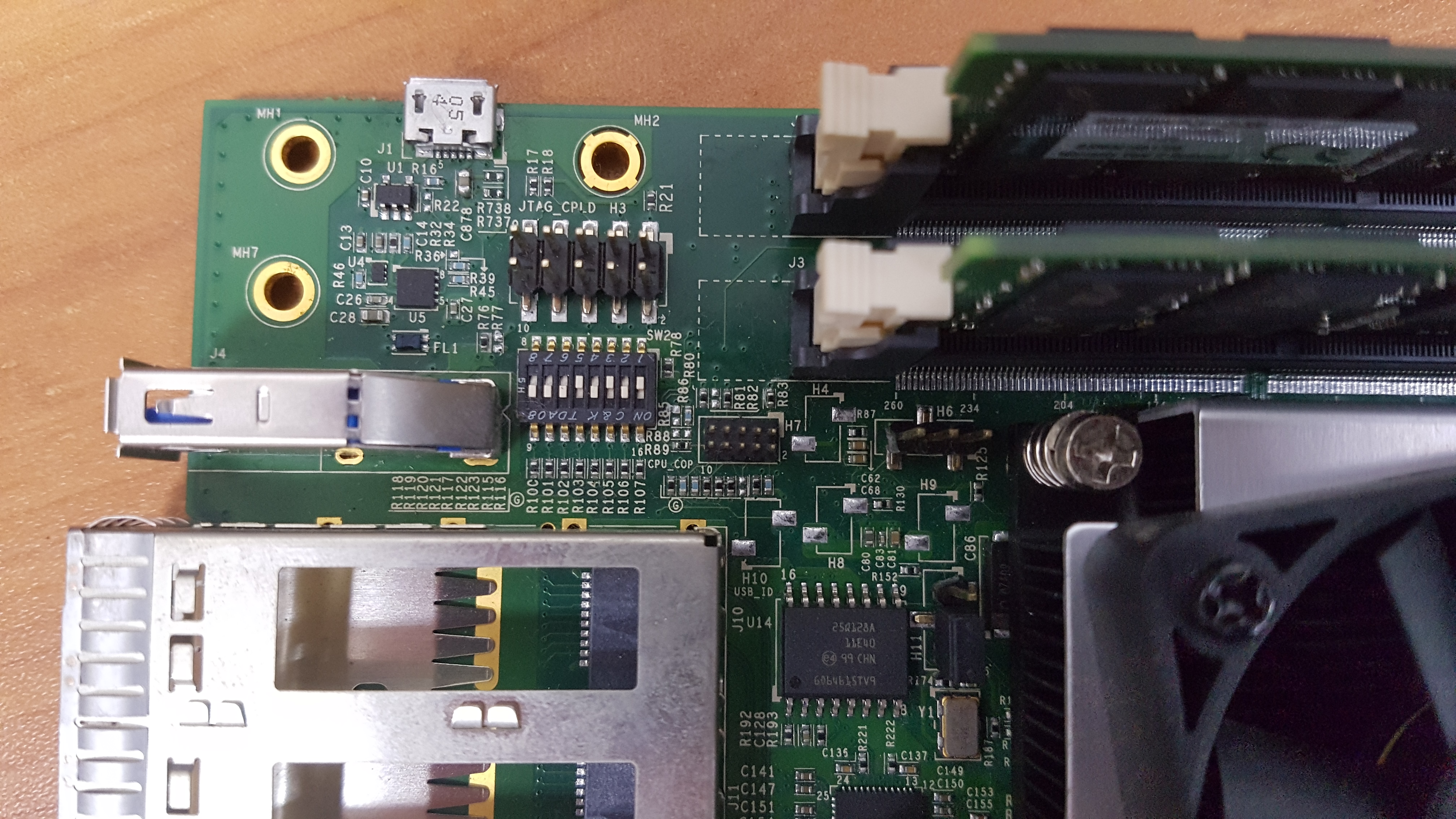

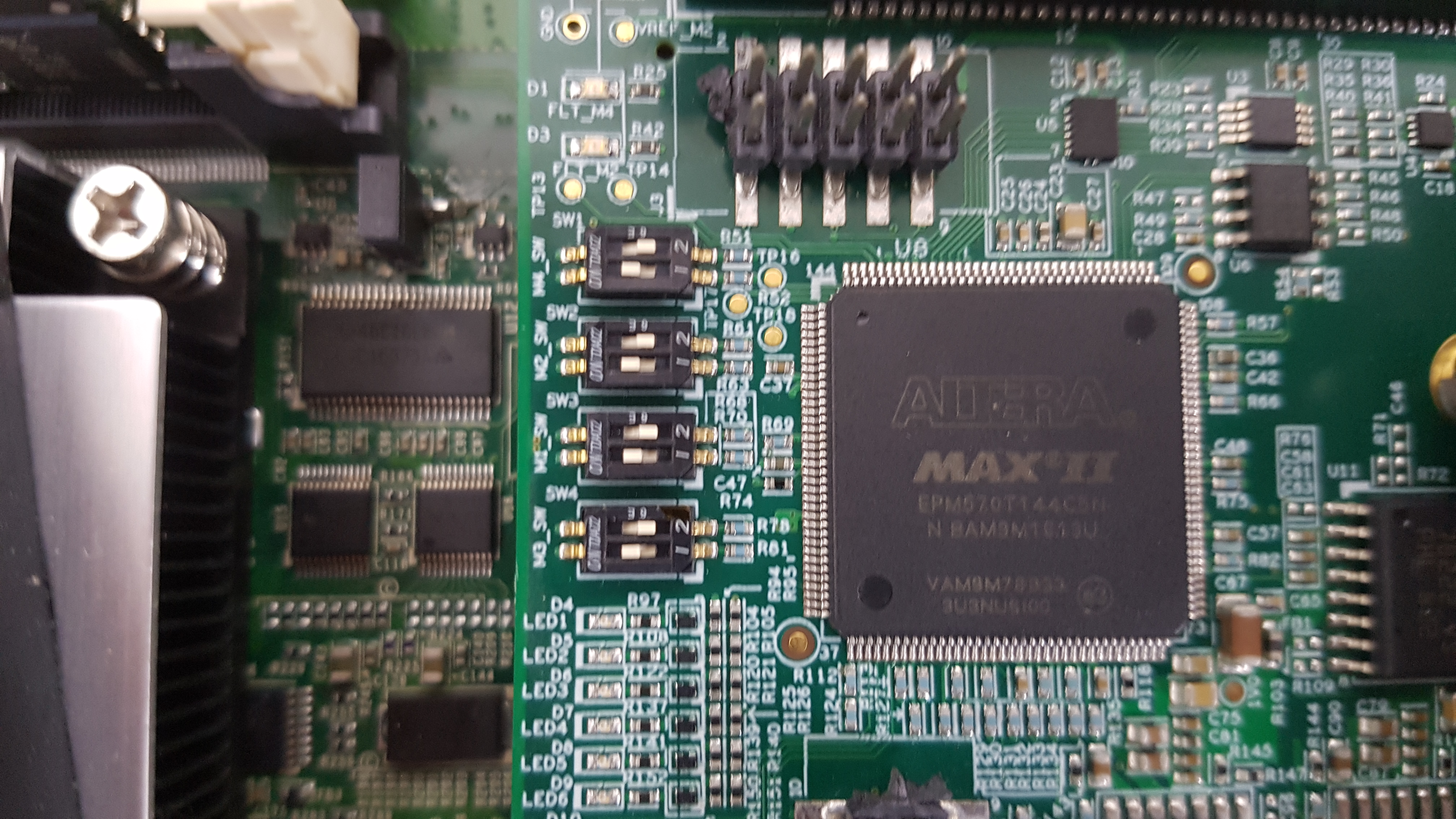

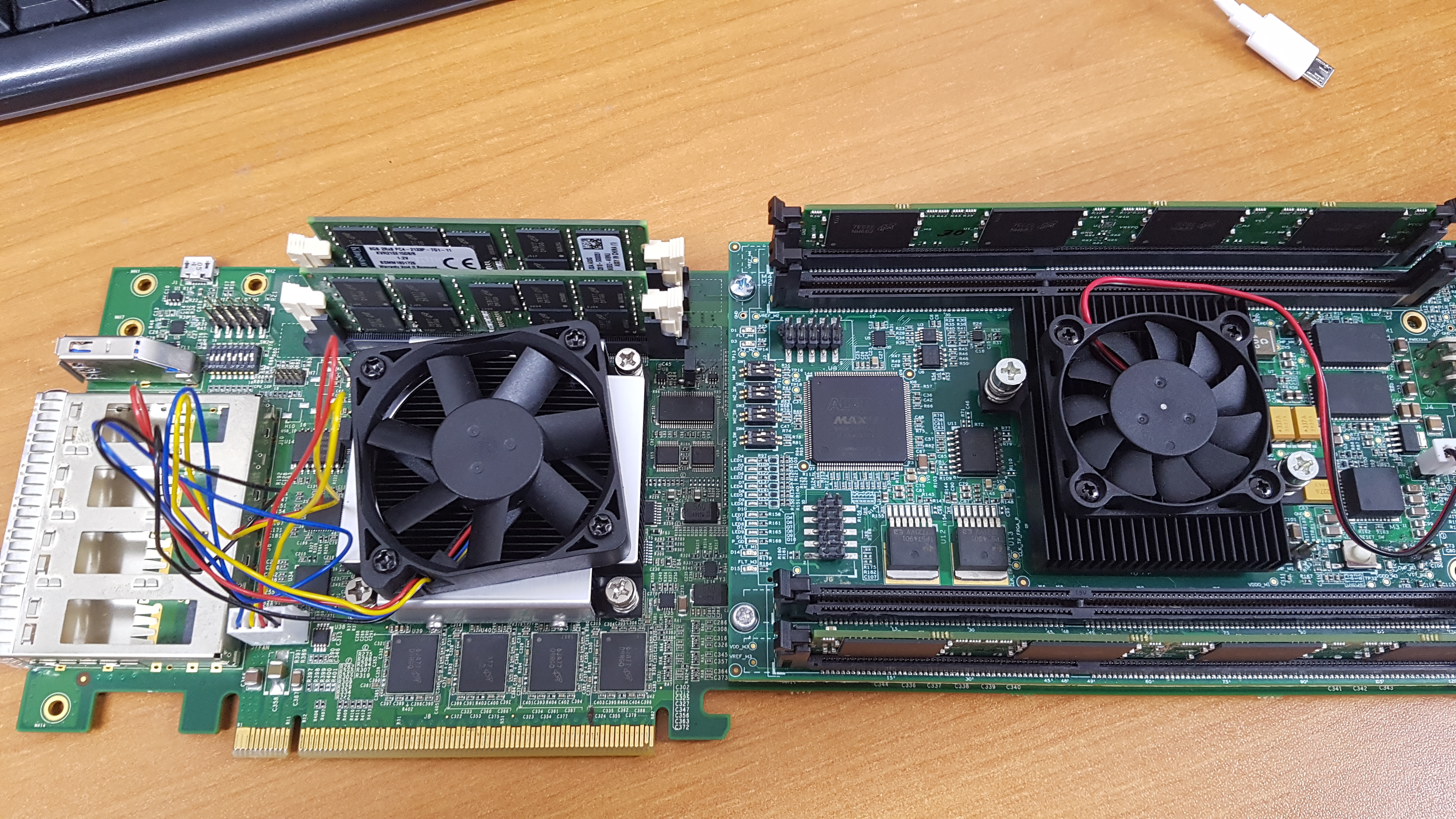

This pictures are my DFC setup.

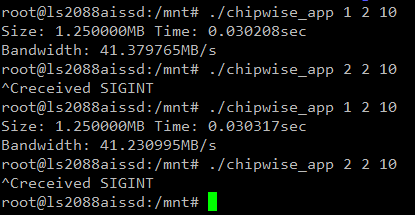

I encountered this error message.

The chip #2 didn't read properly.

So, I upgraded FPGA image (st5_a3_03_05_01.rpd) from Yedhukrishna P.
On the last FPGA version, chipwise_app worked well.

However, a simple app version on https://github.com/DFC-OpenSource/DFC-sdk/tree/LS2088_iSSD/user_space_tools/nand_dimm_test and issd_nvme still don't work.

[yedhukrishnavvdn]

Hi Daejun,

The first issue that you have mentioned
"However, a simple app version on https://github.com/DFC-OpenSource/DFC-sdk/tree/LS2088_iSSD/user_space_tools/nand_dimm_test "
is due to the FPGA image version number difference. The above mentioned application will check the FPGA image version before the execution. If it is not a valid version number it wont work. The source code for the application is now updated and now it will work with new FPGA images.

The second issue
"issd_nvme still don't work."
This application also checks for the FPGA image version number.
The source code for the issd_nvme application is updated now.
Please check with updated source code at:
branch => LS2088_iSSD
path => DFC-sdk/NVMe/issd-nvme

[Daejun]

Hi Yedhukrishna I will check these issues with updated version. Thank you. Regards Daejun 2017년 11월 4일 (토) 오전 12:47, yedhukrishnavvdn <notifications@github.com>님이 작성:

…
