ACS unable to set VLAN to Trunk on Distributed Virtual Switches

[alexandremattioli]

ISSUE TYPE

• Bug Report

COMPONENT NAME

Networking

CLOUDSTACK VERSION

4.14

CONFIGURATION

Advanced networking, Distributed Virtual Switches on VMWare 6.7

SUMMARY

ACS unable to set VLAN to Trunk on Distributed Virtual Switches

STEPS TO REPRODUCE

1- Create physical network with Distributed Virtual Switches
2- Create guest network on the physical switch with DVS
3- Set VLAN/VNI id to 4095
4 - Deploy VM in new network

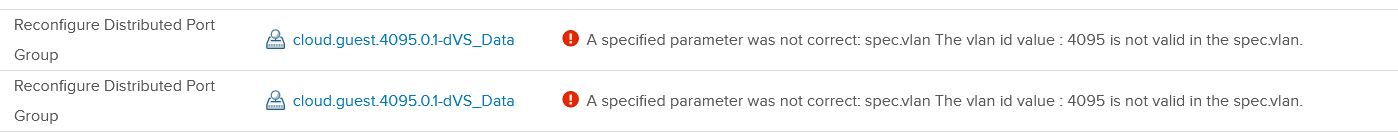

Error shows up on vCenter

[PaulAngus]

Can you add some detail please.

[alexandremattioli]

Details were there but not showing, some issue with formatting, fixed now.

[yadvr]

@alexandremattioli can you check and close the bug if it was env issue, or provide details/steps on how to reproduce it? Thanks

[Spaceman1984]

Seems like that ID is out of range @alexandremattioli according to https://kb.vmware.com/s/article/2075351

[Spaceman1984]

I tested according to your steps and I get the error, but I believe this is a limitation not on Cloudstack.

[yadvr]

@Spaceman1984 can you discuss with @alexandremattioli and @PaulAngus and change the tags to new-feature if this is a CloudStack limitations (known/unknown?).

[Spaceman1984]

I propose we move this to 4.16 and to make this a small new feature.

If you are using a dvSwitch and want to do VLAN trunking, a second range parameter is required. In the UI we will need a checkbox and a start and end ID.

Otherwise, a temporary and imperfect fix would be to just trunk all ids if 4095 is sent.

Would you guys agree? @alexandremattioli @PaulAngus

[yadvr]

Let's move to 4.16, this is not blocker/critical unless we hear from reporters
