PyTrajPlot

PyTrajPlot is a Python tool to visualize trajectories calculated with LAGRANTO based on model outputs from ECMWF's IFS model (European/global domains), the COSMO model, or the ICON model (limited domain centered over Switzerland).

Installation using Conda and Poetry

Get source code

Create a local copy of the git repository and change working directory to it:

git clone https://github.com/MeteoSwiss-APN/pytrajplot.git
cd pytrajplot

Create Conda environment

Create an environment with Conda and activate it

conda create -n pytrajplot python=3.13 poetry=1.8
conda activate pytrajplot

Build the project (Poetry)

Alternative build with mchbuild see further below.

poetry install

Run tests

poetry run pytest

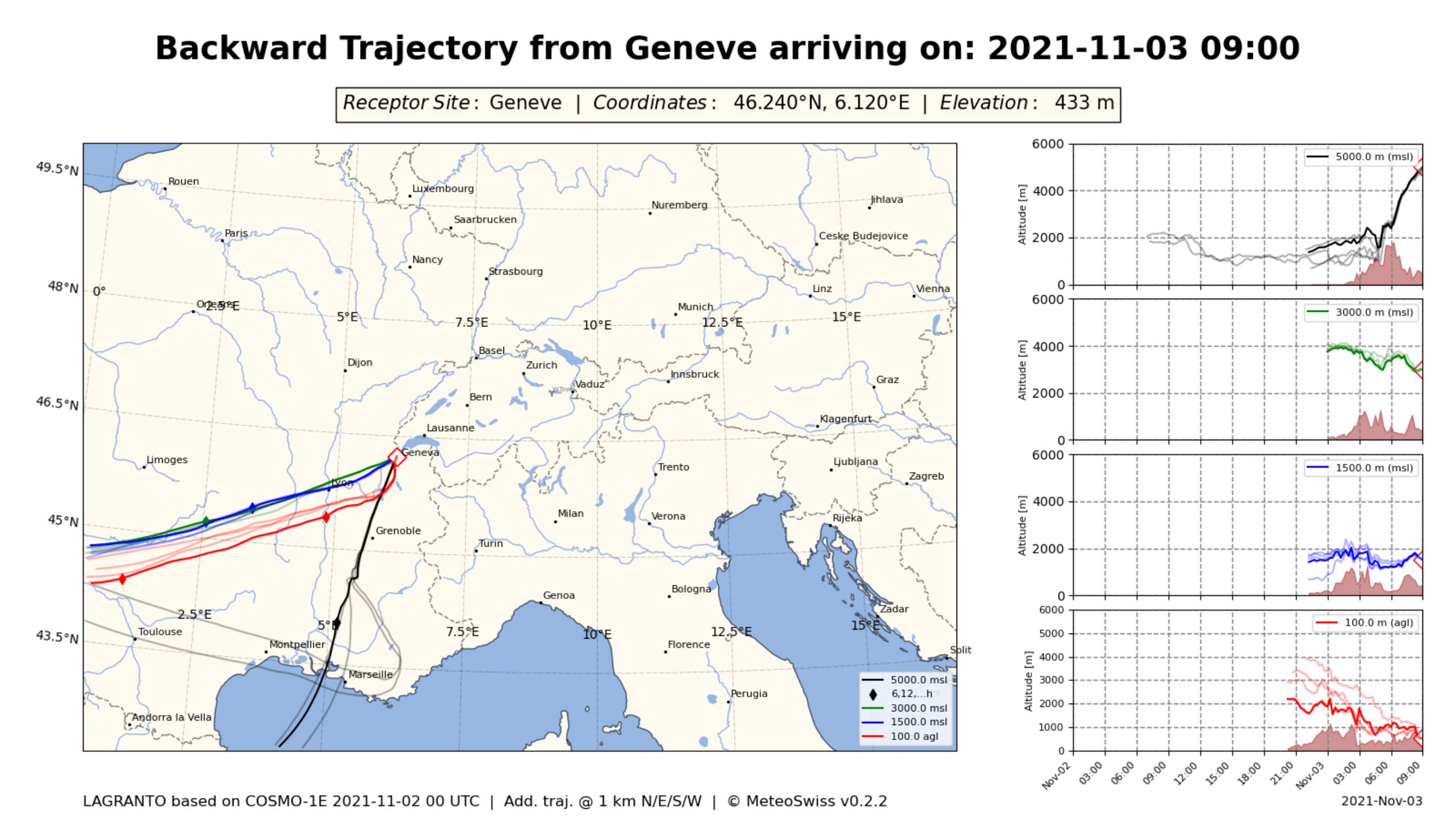

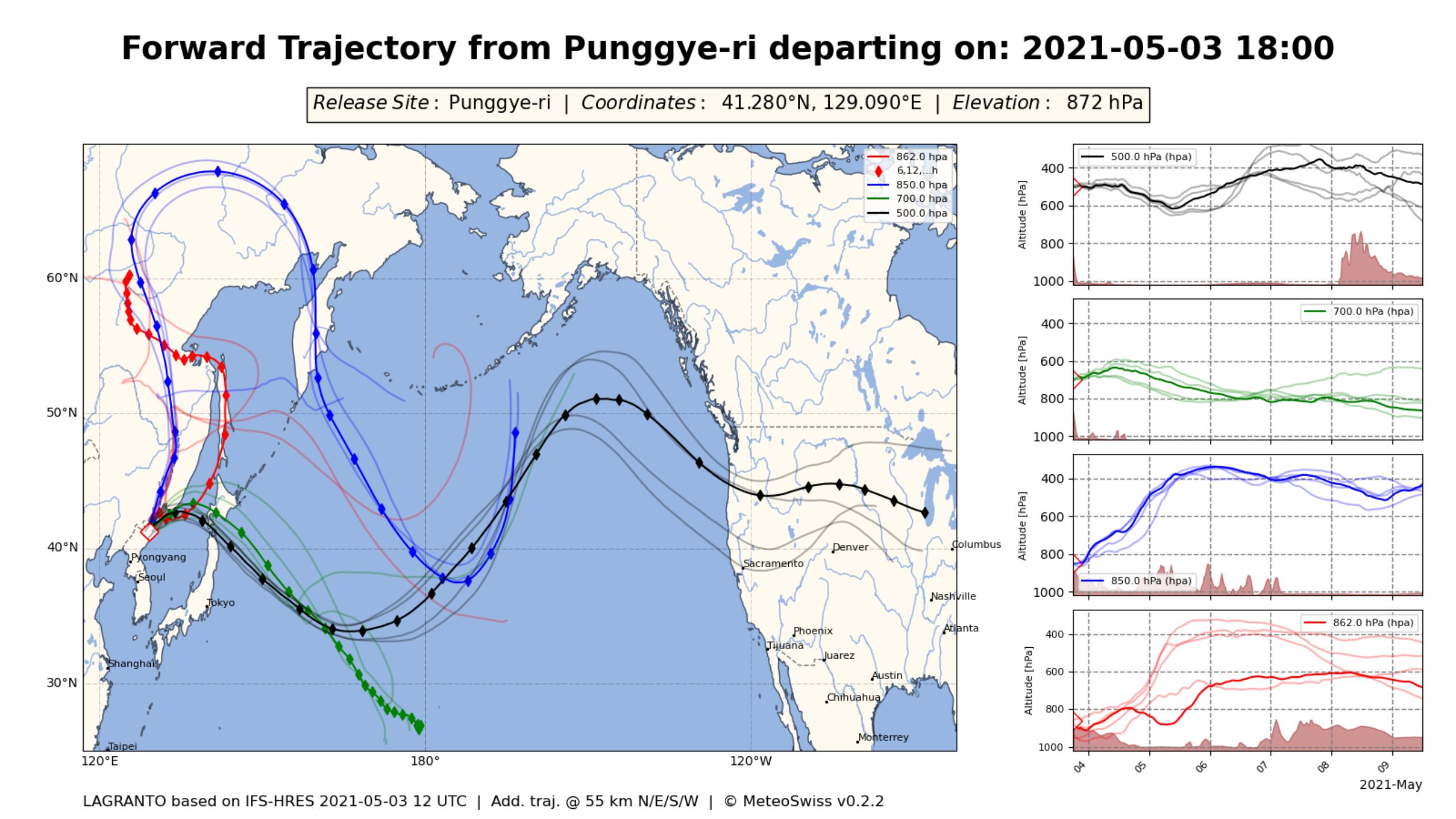

If no errors occur, the tests save plots in their respective folders in the local directory. Example output images:

Run quality tools

poetry run pylint pytrajplot
poetry run mypy pytrajplot

Build the documentation

python -m sphinx -b html -W -c doc doc doc/_build/html

Build the project (mchbuild)

pipx install mchbuild
mchbuild local.build.install
# Optional
mchbuild local.build.format
mchbuild local.build.docs
mchbuild local.test.unit
mchbuild local.test.lint
mchbuild local.run

More information: see .mch-ci.yml and the mchbuild documentation.

Usage

Get a short help with a list of available options:

pytrajplot --help

Output of the above command at the time of writing this documentation:

Usage: pytrajplot [OPTIONS] INPUT_DIR OUTPUT_DIR

Options:
  --start-prefix TEXT             Prefix for the start files. Default: startf_
  --traj-prefix TEXT              Prefix for the start files. Default:
                                  tra_geom_
  --info-name TEXT                Name of plot_info file. Default: plot_info
  --separator TEXT                Separator str between origin of trajectory
                                  and side trajectory index. Default: ~
  --language [en|english|de|ger|german|Deutsch|deutsch]
                                  Choose language. Default: en
  --domain [ch|europe|centraleurope|alps|dynamic|dynamic_zoom]
                                  Choose domains for map plots. Default:
                                  centraleurope, europe, dynamic
  --datatype [eps|jpeg|jpg|pdf|pgf|png|ps|raw|rgba|svg|svgz|tif|tiff]
                                  Choose data type(s) of final result.
                                  Default: pdf
  -V, --version                   Print version and exit.
  --help                          Show this message and exit.

Only INPUT_DIR and OUTPUT_DIR are mandatory. The input directory must contain exactly one plot_info file and one or more pairs of one trajectory file and one starting points file each.

File naming convention

The name of the plot information file (default plot_info) and the prefixes of the trajectory data file (default tra_geom_) and the starting point file (default startf_) can be specified with options.

The relevant part of the trajectory-data/starting-points filenames is the key, generally formatted as XXX-YYYF or XXX-YYYB. See below for the meaning of the parts.

Naming requirements:

1. Keys must match between start and trajectory files (i.e. traj_prefix+key matches start_prefix+key).
2. Keys must end with F or B to indicate trajectory direction.
3. XXX refers to the 3-digit start hour of the computed trajectory, relative to the base time (initial time) of the weather prediction model.
4. YYY refers to the 3-digit end hour of the trajectory, relative to model base time.
5. XXX and YYY are separated by a dash.
6. The difference between YYY and XXX equals the trajectory length in hours. For backward trajectories, XXX is greater than YYY.

Information in the header and footer of output plots is partially generated from the key.

Examples

Backward trajectories (starting at 33 h in the future, going backwards to the model base time):

startf_033-000B/tra_geom_033-000B

Forward trajectories (from model base time 48 h into the future):

startf_000-048F/tra_geom_000-048F

Code overview

This is a short guide showing how a pytrajplot invocation flows through the codebase. See the referenced modules for implementation details.

Example output:

pytrajplot tests/test_hres/4_altitudes/ plots
--- Parsing Input Files
--- Assembling Output
--- Done.

1. pytrajplot/cli.py — argument parsing (function: interpret_options).

2. Parsing input files: pytrajplot/parse_data.py — the check_input_dir function scans the input directory and parses start and plot_info files. The read_startf and PLOT_INFO utilities parse those files; read_trajectory parses trajectory files.

   The parsing pipeline returns two dictionaries: trajectory_dict (main) where each key maps to a pandas DataFrame with combined start/trajectory data, and a second dictionary containing plot_info data.

3. Assembling output: pytrajplot/generate_pdf.py — converts each DataFrame to plots by calling the plotting pipeline (function assemble_pdf), which:

• creates the output directory (if needed),
• adds altitude plots, header/footer and map figures,
• saves figures.

See the src/pytrajplot/plotting directory for plotting scripts.

Fun fact: MeteoSwiss generates roughly 2800 trajectory plots per day for the IFS and ICON-CH1-EPS models.

Release

Releases follow a GitOps flow and are triggered by creating Git tags. Tags must follow semantic versioning (https://semver.org/) and be PEP 440 compatible (https://peps.python.org/pep-0440/).

Deploy

The continuous integration (CI) pipelines publish artifacts to the artifact registry. For ACPM-style deployments, update the artifact list in the deployment repository with the new version.
