Android Things LED-Blink Project

Part 2 of Android Things Tutorial. For initial setup and Hello World, see Part 1

To see the main java code, go to HomeActivity.java

Materials

1. Raspberry Pi 3 Model B
2. Breadboard
3. LED
4. 1K Ohm Resistor
5. Two Male/Female Jumper Wires

Raspberry Pi 3 I/O

This is the pin configuration for Android Things for Raspberry Pi found here

For our purposes, we will be using:

• BCM2 - Pin 3
• Ground - Pin 6

1. Hook up LED

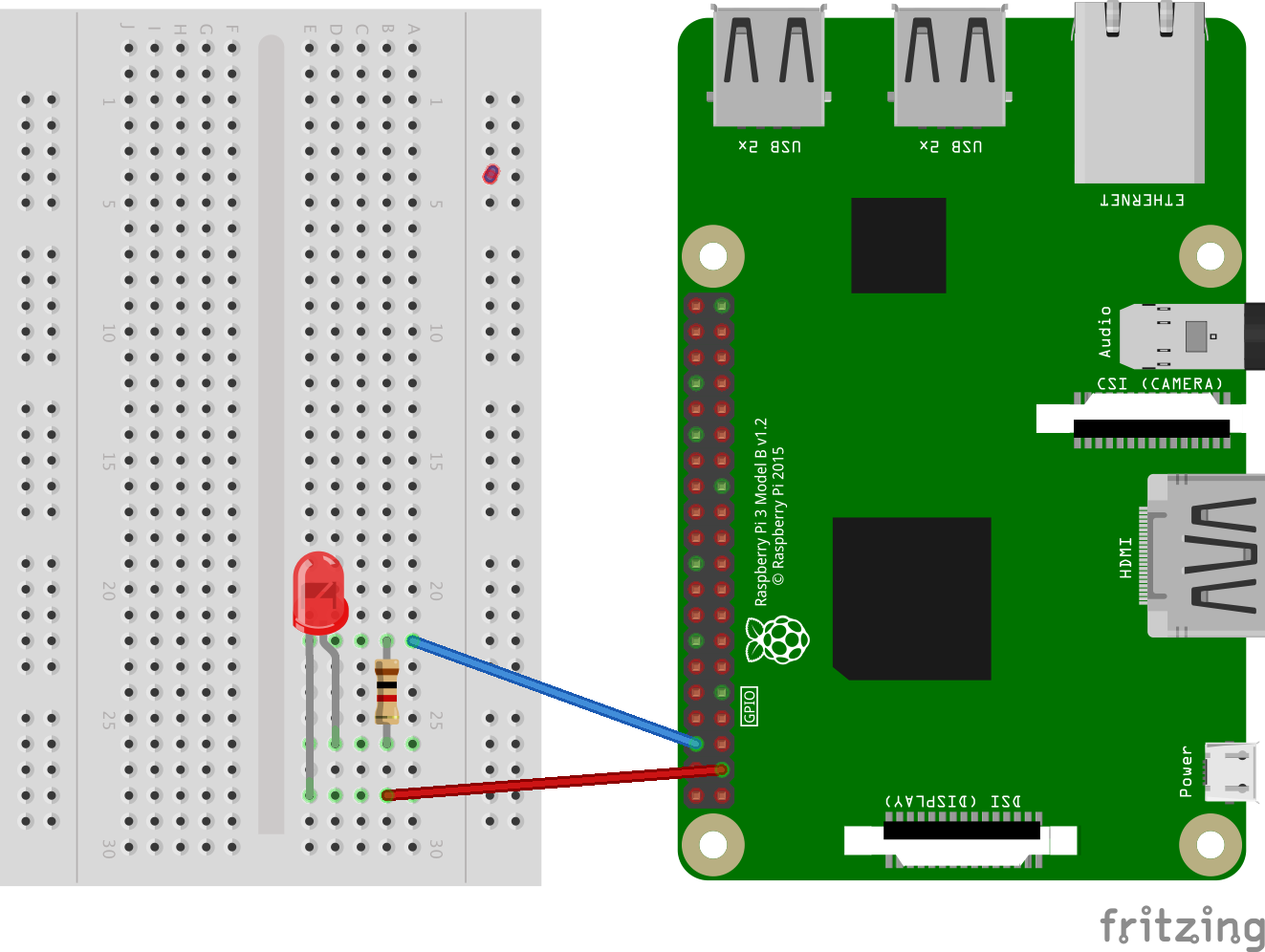

Wire up the Pi following this schematic:

2. ADB Connect and Run App

See Tutorial Part 1 step 5 and 6 for help on how to do this.

Results:

LED will turn on and off in 1 second increments.
