IRC Server

This project is about building a functional IRC (Internet Relay Chat) server from scratch in C++. The goal is to create a multi-client, event-driven network application that handles IRC protocol commands and manages user connections, channels, and message routing.

This project is a collaboration between:

Alex: Server core & connection management, message handling, logging mechanism, and this ReadMe.
Pavlos: Channel logic.
Natalie: File transfer and server bot.

What is IRC?

IRC, or Internet Relay Chat, is an open protocol for real-time text-based communication. It was created in 1988 by Jarkko Oikarinen in Finland, with the protocol officially documented in RFC 1459 in 1993 for the first time^[1]. This project's server implementation is based on this foundational RFC.

Think of IRC as the standard for instant messaging and group chat that existed before web browsers became the primary application for accessing the internet.

How it works: IRC operates on a client-server model. Users run a client program that connects to an IRC server. These servers are interconnected in a network to form an entire IRC network.
Channels and Users: Communication happens in channels (group chats) or through private, one-on-one messages. A user is identified by a unique nickname on a given network.
Key Features: IRC is known for its simplicity and efficiency. It's a lightweight protocol, making it ideal for large-scale communities and for sharing information quickly, without the overhead of modern web-based applications. It's still used by open-source projects, developers, and niche communities. A popular GUI client is HexChat, while WeeChat is a terminal client

Key Terms

Server: A program that manages connections and routes messages between users.
Client: A program (like mIRC, HexChat, or WeeChat) that a user runs to connect to a server.
Channel: A named group chat room, denoted by a prefix like # or &. For example, #42chat.
Nickname: A unique name a user chooses to identify themselves on a network.
Hostmask: The full identity of a user, typically nickname!username@hostname, used for security and access control.

How to Build the Server

1. Prerequisites

To build and run the server, ensure you have the following tools installed on your system:

Git: To clone the source code.
A C++ Compiler (e.g., g++): To compile the code.
Make: A build automation tool that reads the Makefile.

2. Clone the Repository

Clone the repository and navigate into the project directory:

git clone https://github.com/alx-sch/IRC_server ircserv && cd ircserv

3. Build the Server Program

Use the make command to compile the server executable.

make

This command reads the project's Makefile and handles the entire compilation process. The build system is designed to be cross-platform and automatically adapts for macOS and Linux, which use POSIX-compliant sockets. Windows is not supported as its Winsock API is incompatible with this approach.

OS-Specific Build: The server's non-blocking socket functionality is handled differently on Linux and macOS. The Makefile detects the OS and passes the correct compiler flags to handle these variations.
Linux: The code uses the SOCK_NONBLOCK flag.
macOS: The code uses the fcntl() function to set the non-blocking flag.

4. Run the Server

Provide a port number and a password for the server. The standard IRC port is 6667.

// Usage: ./ircserv <port> <password>
./ircserv 6667 pw123

If you want to allow connections without a password, use an empty string (") as the password argument.

5. make Commands

While make is sufficient for a basic build, here are a few other essential commands you might use:

make bot: Have a bot join the server! Learn more about the bot here.
make clean: Removes all the compiled object files (.o and .d files) and the obj directory.
make clean_log: Removes all generated log files from the project’s root directory.
make fclean: Performs a full cleanup by removing object and log files + the ircserv executable.
make re/make re_bot: A shortcut that runs fclean and then all/bot to rebuild the project from scratch.
make checkout_os: Prints the detected operating system to the console.

How to Connect to the Server

After you have built and run the server, you can connect to it using a variety of clients.

1. First, Find Your IP Address

To connect, you need to know your machine's IP address. Open a terminal and use this command to list your local IP addresses.

Linux

 $ hostname -I
 10.14.6.2 172.17.0.1 192.168.122.1

macOS

$ ifconfig | grep "inet "
inet 127.0.0.1 netmask 0xff000000
inet 192.168.2.152 netmask 0xffffff00 broadcast 192.168.2.255

For a local connection (from your own machine), you can always use the loopback address 127.0.0.1 or just localhost.

To make your server publicly accessible, you will need to configure your router with port forwarding, directing a public port (e.g., 6667) to your machine's local IP address. This Youtube video might give you some insights on how to do this.

2. Connect with Terminal Tools

To quickly test the server, you can use nc (Netcat) or telnet.

nc <your-IP-address> <port>

or

telnet <your-IP-address> <port>

Example: nc localhost 6667 (accessing from the same machine that hosts the server) or nc 10.14.6.2 6667 (accessing from the same local network, e.g. same host machine or some other computer in the same local network).

Once connected, you can communicate with the server using IRC commands (you would usually first register with the server by sending valid NICK, USER, and PASS commands).

3. Connect with a GUI Client

For a better user experience, a graphical client is recommended, e.g. Hexchat:

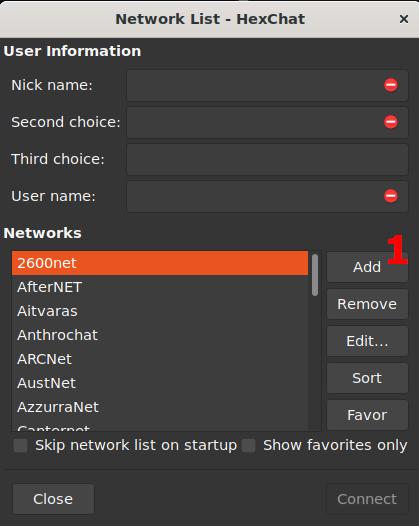

Open HexChat. In the Network List (prompted automatically), add a new network (1).

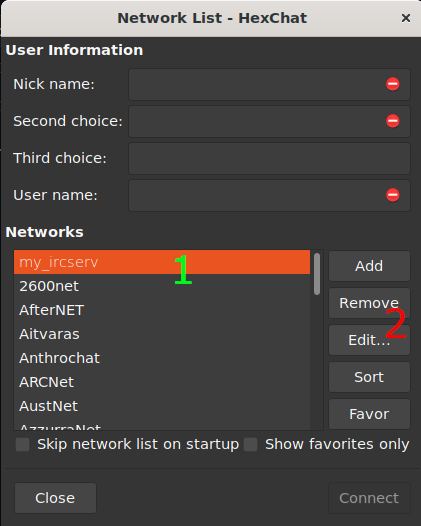

Name the new network (1) and edit its settings (2):

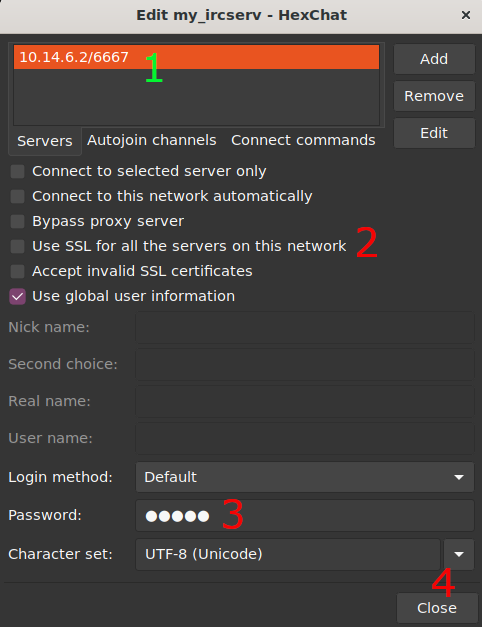

There is already a default server listed. Change its host IP address and port (1) to match your own. Disable SSL, since the server does not support it (otherwise it would fail to interpret the encrypted requests) (2). Enter the server password if required (3). Close the network settings (4):
Enter the user info (nick, alt nick, username) (1), select the custom network (2), and connect (3).

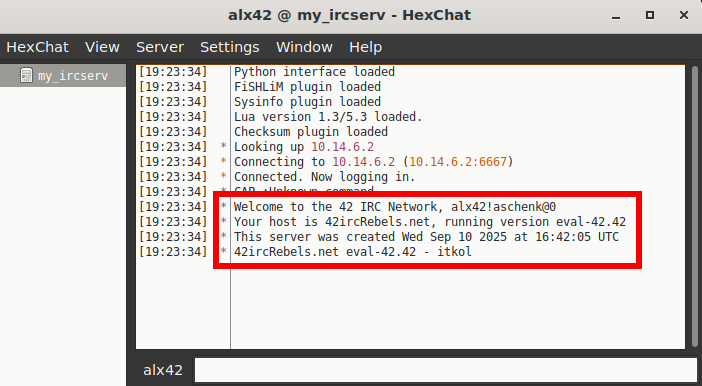

HexChat automatically sends the registration commands (NICK, USER, PASS) to the server. The client is now ready: join a channel with /join #channelname or send a private message with /msg nickname message.

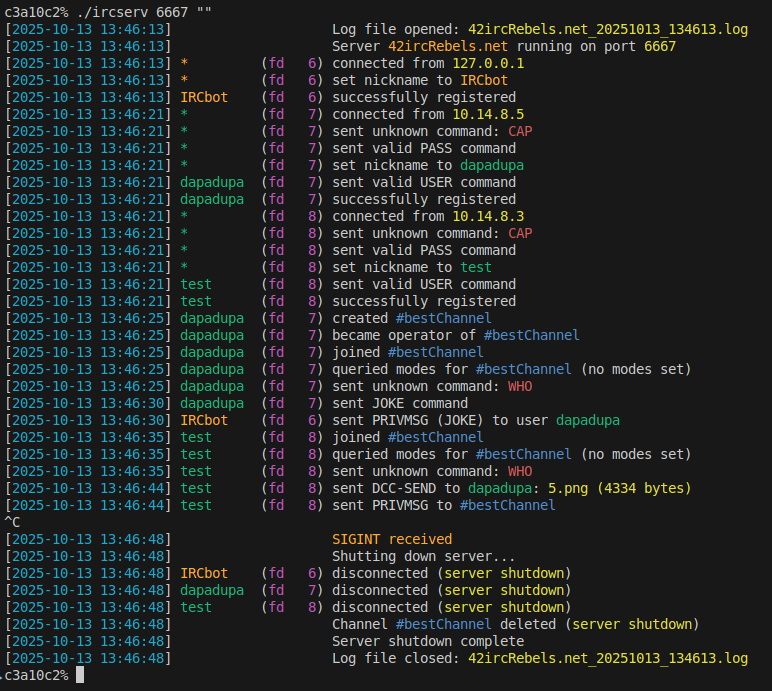

The server logs events to the console and to log files in the root directory (<server_name>_<timestamp>.log). The client may send unsupported commands (e.g. CAP), but all core IRC functions still work (see below).

Server Features

User Commands:
- NICK: Handles setting or changing a nickname - NICK newnickname
- USER: Handles setting a username (and other info) - USER <username> <hostname> <servername> <realname> → USER guest 0 * :Ronnie Reagan. Hostname and servername are usually ignored/masked in modern IRC but info is used to form the hostmask nickname!username@hostname, which uniquely identifies a client.
- PASS: Handles the connection password for authentication - PASS mysecretpassword
- JOIN: Allows a user join a channel, or create it if it doesn’t exist - JOIN #general
- QUIT: Allows a user to disconnect from the server - QUIT :Leaving for lunch (reason is optional)
- PART: Allows a user to leave a channel - PART #oldchannel
- PRIVMSG: Used for sending private messages to a user or a channel - PRIVMSG username :Hello there!, PRIVMSG #general :What's everyone up to?
- NOTICE: Similar to PRIVMSG, but used for server messages and automated responses. It should not be used for client-to-client communication. The main difference is that a user's IRC client should never automatically respond to a NOTICE - NOTICE username :You have a new message.
- LIST: Lists up all existing channels (shows number of active users, topic if any) - LIST
Channel Operator Commands: The server differentiates between operators and regular users. Operators have the authority to use specific commands to manage a channel:
- KICK: Ejects a client from a channel - KICK #general baduser :You've been kicked for spamming. (reason is optional)
- INVITE: Invites a client to a channel. This is particularly useful for invite-only channels - INVITE newuser #general
- TOPIC: Changes or views the channel topic - TOPIC #general :Welcome to the main chat! (setting topic), TOPIC #general (checking topic)
- MODE: Changes a channel's mode using the following flags, using + or - to add/remove these modes.
  - i: Toggles the invite-only channel mode - MODE #private +i (makes channel invite-only), MODE #private -i (removes invite-only restriction)
  - t: Toggles the restriction of the TOPIC command to channel operators - MODE #general +t restricts the TOPIC command so only operators can change the topic.
  - k: Toggles the channel key (password) - MODE #locked +k secretkey
  - o: Gives or takes away channel operator privilege - MODE #general +o newoperator
  - l: Sets or removes a user limit for the channel - MODE #limited +l 10
Bot Commands:
- JOKE: Bot tells a joke.
- CALC: Bot evaluates a mathematical expression: CALC 22 + 47 - 3*23 / 2.
Logging and Audit Trail: The server includes a detailed logging mechanism for debugging and operational oversight.
- Event Tracking: The system maintains a structured log of all events, including successful/failed authentications, connection lifecycle, bot activity, every command executed by users and critical server failures.
- Dual Output: Logs are output in real-time to the server console (for immediate monitoring) and saved persistently in dedicated log files (for audit and post-mortem analysis).

Client–Server Communication

User Registration

User registration on an IRC server is a three-step process: password (PASS), nickname (NICK), and user information (USER). The client sends these commands to the server and the server validates them to register the user and begin the communication session.

Upon successful registration, the server sends back welcome messages with numeric codes 001 through 004 to confirm the connection and provide server details.

:42ircRebels.net 001 nick :Welcome to the 42 IRC Network, nick!user@host
:42ircRebels.net 002 nick :Your host is 42ircRebels.net, running version eval-42.42
:42ircRebels.net 003 nick :This server was created Thu Sep 11 2025 at 07:30:01 UTC
:42ircRebels.net 004 nick 42ircRebels.net eval-42.42 - itkol

Server Replies to Client

In IRC, the server communicates with clients by sending protocol-compliant replies. Each message follows a standard format, as specified in RFC 1459^[1].

IRC Message Format

Every message from the server to the client has this general structure:

:<prefix> <command or numeric> <target> :<message>\r\n

Field	Description
`:<prefix>`	Always the server name (e.g. `irc.example.org`)
`<command>` or `<numeric>`	Either a command name (e.g. `NOTICE`) or a numeric reply (`001`, `433`, `464`, etc.)
`<target>`	Typically the user's nickname, or `*` if the client is not yet registered
`:<message>`	Human-readable message text (trailing parameter)
`\r\n`	Required line ending in all IRC messages

Function: `sendServerMsg()`

The following helper method of the User class ensures the server reply is properly formatted and appended to the user's output buffer, which is eventually sent via send() in handleWriteReadyUsers().

/**
Appends a raw IRC message from the server to the user's output buffer,
which is eventually flushed via `send()`.
Automatically prefixes the message with the server name and appends `\r\n`.

 @param message		The already-formatted reply (e.g. "001 Alex :Welcome...")
*/
void	User::sendServerMsg(const std::string& message)
{
	if (_fd == -1) // User not connected
		return;

	std::string	fullMessage = ":" + _server->getServerName() + " " + message + "\r\n";
	_outputBuffer += fullMessage;
}

This function:

Prepends the server name as the prefix
Appends \r\n to comply with the IRC protocol
Stores the message in the user’s output buffer (later flushed via send())

Example usage:

user->sendServerMsg("001 nick :Welcome to the IRC Network, nick!user@host");

Which sends the following to the client

:42ircRebels.net 001 nick :Welcome to the 42 IRC Network, nick!user@host

Project Architecture

The core of the server is the Server class. It's responsible for managing the entire IRC network, including user connections, channels, and command handling. It uses a non-blocking, single-threaded architecture to manage multiple clients efficiently via I/O multiplexing with select().

The project is structured around several key classes:

Server: The central class that manages the main server socket, new connections, and the main server loop. It contains maps to store and manage User and Channel objects.
User: Represents an individual client connected to the server. It stores all user-specific data, such as nickname, username, and connection status, and has input/output buffers for network communication. A user can be in multiple channels, and the User class tracks this membership.
Channel: Represents a chat room on the server. It manages its own list of members, operators, invitations, topic, and channel modes (e.g., password, invite-only, user limit).
Command: A static utility class responsible for parsing and handling all IRC commands. It uses a tokenize() method to break down incoming messages and dispatches them to specific handler functions (e.g., handleJoin, handleKick).

Operational Workflow

Server Lifecycle: The server starts in main.cpp by creating a Server instance with a given port and password. The Server::run() method then starts a loop that continuously monitors all client sockets using select(). It waits for one of three types of events to handle I/O:
- New Connections: A new connection request on the main server socket is handled by FD_ISSET(_fd, &readFds).
- Incoming Data: Incoming data from existing clients is processed by handleReadyUsers(readFds).
- Outgoing Data: Outgoing data is sent to clients with pending messages by handleWriteReadyUsers(writeFds).
User Registration: A new user must complete a three-step registration process using the PASS, NICK, and USER commands. The User class tracks the status of these commands, and the tryRegister() method attempts to complete the registration once all three commands have been successfully processed. The server also validates the nickname according to IRC rules to prevent invalid or duplicate nicknames.
Command Processing:
- When a full message is received from a client, the Command::tokenize() function parses the message into a list of tokens.
- Command::getCmd() determines the command type.
- Command::handleCommand() then calls the appropriate static handler function (e.g., handleJoin for the JOIN command).
Channel Management: The Server class manages all channels, while the Channel class handling details, such as the topic, user limit and channel key. It also makes sure that there are no "zombie" channels without any users.
Data Flow: The server uses input and output buffers for each User. Incoming data from a client is accumulated in the input buffer until a complete IRC message (\r\n) is found. Once processed, a response is formatted and appended to the user's output buffer, which is then sent back to the client when their socket is ready for writing. This buffering prevents the server from blocking while waiting to send data.

Core Server Functions

Non-Blocking I/O

Non-blocking I/O is a programming technique where a function call for an I/O operation doesn't wait for the operation to complete. Instead, it returns immediately, indicating how much data was processed or if the operation couldn't be completed. This is crucial for building efficient, single-threaded servers that must handle many client connections simultaneously.

The alternative, blocking I/O, would cause the server to freeze while it waits for a single operation to finish. For example, if the recv() function is called on a blocking socket and there is no data to read, the entire program would pause until data arrives. This makes it impossible to handle other clients or perform other tasks.

Handling Non-Blocking Errors

When you perform a non-blocking I/O operation (like recv() or send()) on a socket that is not yet ready, the system call will return an error code, typically EAGAIN or EWOULDBLOCK. These are not critical failures; instead, they are signals that the operation could not be completed immediately because the resource is temporarily unavailable.

In a server using select(), this happens if you mistakenly try to read from a socket that select() hasn't marked as ready to be read from, or try to write to a socket whose buffer is full. The correct way to handle these errors is to simply ignore them and try again on the next iteration of the main loop. This ensures the server never gets stuck and can continue monitoring other connections.

Socket Functions

socket(): Server::createSocket() uses socket(AF_INET, SOCK_STREAM | SOCK_NONBLOCK, 0) to create the server socket. The SOCK_STREAM specifies a TCP socket, and AF_INET sets the address family to IPv4. The SOCK_NONBLOCK flag is an important part, as it makes the socket non-blocking. On a macOS, the socket() call creates a standard blocking socket first. Then, the fcntl() function is used with the F_SETFL flag to explicitly set the O_NONBLOCK option, modifying the socket to be non-blocking
setsockopt(): In Server::setSocketOptions(), this function is used to set the SO_REUSEADDR option. This allows the server to restart immediately on the same port without waiting for the operating system to clear the previous socket's state.
bind(): Server::bindSocket() uses bind() to attach the server socket to a specific address and port. It uses INADDR_ANY to bind to all available network interfaces (local machine, local network, public Internet, etc.) and htons(_port) to ensure the port number is in the correct network byte order.
listen(): Server::startListening() method calls listen() to put the socket into a state where it waits for incoming connections. The SOMAXCONN constant is used as the backlog, which tells the operating system how many incoming connections can be queued up while the server is busy.
select(): Server::run() uses select() as the central mechanism for its event loop. This function is what allows the server to monitor all sockets at once for incoming messages or readiness to send data. The prepareReadSet() and prepareWriteSet() functions are specifically written to work with select(). select() blocks until one or more monitored sockets become ready for an event (reading from / writing to). Once the function returns, you can iterate through the sets and find the ready sockets and then apply non-blocking I/O operations on them.
poll(), epoll() (Linux) and kqueue() (macOS/BSD) are alternatives to select(), implementing the same mechanism in a more modern, efficient, and scalable way.
accept(): In Server::acceptNewUser(), the accept() call is used to create a new socket for an incoming connection. This new socket is then used to communicate with the specific client.
send(): Server::handleWriteReadyUsers() uses send() to push data from a user's output buffer to their connected socket.
recv(): Server::handleUserInput() uses recv() to read data from a user's socket and append it to the user's input buffer (stored in the User object). The server later reads and parses this buffer into IRC messages. Server::handleUserInput() also checks the number of bytes read to determine if the client is still connected or if a message was received.

File Transfer

DCC (Direct Client-to-Client) is the standard method for transferring files between IRC clients. The IRC server itself does not carry the file; it only passes along the DCC request (IP address and port) to the receiving client via a PRIVMSG. This means the transfer occurs directly between two clients, without a central server mediating the data. Since DCC always uses direct TCP connections, the IP address is crucial — the receiving client must be able to reach the sending client’s address. TCP is like a secure, reliable phone line between two computers — you can send data, and it ensures the other side gets it all in the right order.

IP Setting

By default, HexChat (and many other IRC clients) automatically selects an IP address for DCC transfers. This automatically chosen IP may not be reachable by other hosts, for example:

A loopback address (127.0.0.1)
A WAN/external IP that is not accessible from the local network

In these cases, the DCC IP must be set manually. For LAN transfers, you can use the following steps:

Retrieve your computer’s LAN IP address by running: hostname -i
Open HexChat and log into your IRC server.
Navigate to: Settings → Preferences → Network Setup → File Transfers
In the DCC IP address field, paste your LAN IP address.
File transfers between hosts on the same LAN should now work.

Note: If you were sending files over the internet, you would need to use your external/WAN IP and set up port forwarding. For local network transfers, the above steps are sufficient.

Sending the File

Note: Tools such as nc or telnet won’t trigger a real DCC transfer since they do not implement CTCP (Client-To-Client Protocol used by IRC clients). Only real IRC clients do (e.g. HexChat).

Using the `/dcc` Command

Use the following syntax inside your IRC client:

/dcc send <nickname> <full_path_to_file>

The client interprets this command and sends a corresponding PRIVMSG through the server to the recipient:

PRIVMSG <Recipient_Nick> :\x01DCC SEND <filename> <longip> <port> <filesize>\x01

Via Hexchat GUI

Locate the recipient: Find the recipient's nickname in the user list (usually on the right side).
Select a file: Right-click on the recipient's nickname, choose "Send a File..." and select the file you want to send.
Wait for acceptance: An "Uploads & Downloads" window will open with the status "Waiting". The transfer will begin once the recipient accepts.

Server Role

The server automatically facilitates the DCC handshake, provided that PRIVMSG handling is correctly set up. This server implementation also detects the \x01 delimiters in PRIVMSG messages and validates the DCC SEND command in order to log the file transfer properly.

Bot

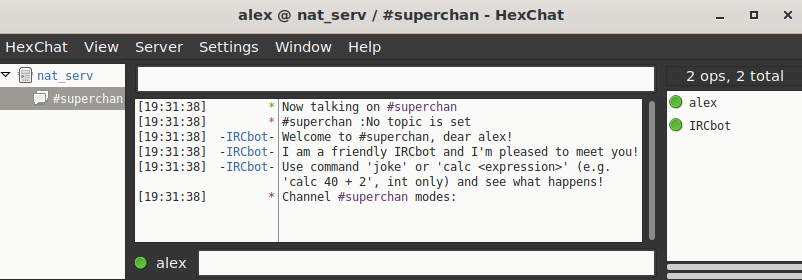

Compiling the server via make bot registers a bot as a regular client upon startup.

Design and Integration: The bot is implemented as a regular User object (with a set _isBot flag). This allows the bot to leverage all existing client-handling logic, simplifying its integration into the main server loop.
Custom Commands: Two new custom commands, JOKE and CALC, were implemented and integrated into the server's command dispatcher.
- When a user sends these commands (e.g., JOKE or CALC 5+5), the bot replies via PRIVMSG.
- JOKE: Returns a random joke from a predefined set of ten.
- CALC: Solves the mathematical expression provided as argument(s); spaces are allowed.
Channel Automation:
- Auto-Join: The bot automatically joins every new channel on the server.
- Operator Status: Upon joining, the bot is immediately granted channel operator status, making it impossible for users to kick or de-op the bot from the channel.
- Welcome Notice: The bot sends a NOTICE to the channel creator and to every new user joining, welcoming them and providing instructions on how to use the bot's commands.
- No Zombie Channels: The presence of the bot does not prevent the channel from being properly closed and deleted once every human user has left.

References

[1] Oikarinen, J.; Reed, D.(1993). Internet Relay Chat Protocol. Request for Comments: 1459

The project badge is from this repository by Ali Ogun.

Name		Name	Last commit message	Last commit date
Latest commit History 316 Commits
.assets		.assets
.devcontainer		.devcontainer
include		include
src		src
.gitignore		.gitignore
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Uh oh!

Repository files navigation

IRC Server

Table of Contents

What is IRC?

Key Terms

How to Build the Server

How to Connect to the Server

Server Features

Client–Server Communication

User Registration

Server Replies to Client

IRC Message Format

Function: `sendServerMsg()`

Project Architecture

Operational Workflow

Core Server Functions

Non-Blocking I/O

Handling Non-Blocking Errors

Socket Functions

File Transfer

IP Setting

Sending the File

Using the `/dcc` Command

Via Hexchat GUI

Server Role

Bot

References

About

Uh oh!

Releases

Packages

Contributors 3

Uh oh!

Languages

License

alx-sch/IRC_server

Folders and files

Latest commit

History

Repository files navigation

IRC Server

Table of Contents

What is IRC?

Key Terms

How to Build the Server

How to Connect to the Server

Server Features

Client–Server Communication

User Registration

Server Replies to Client

IRC Message Format

Function: sendServerMsg()

Project Architecture

Operational Workflow

Core Server Functions

Non-Blocking I/O

Handling Non-Blocking Errors

Socket Functions

File Transfer

IP Setting

Sending the File

Using the /dcc Command

Via Hexchat GUI

Server Role

Bot

References

About

Topics

Resources

License

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Contributors 3

Uh oh!

Languages

Function: `sendServerMsg()`

Using the `/dcc` Command

Packages
