RFID Tag controlled Entry Door Control System

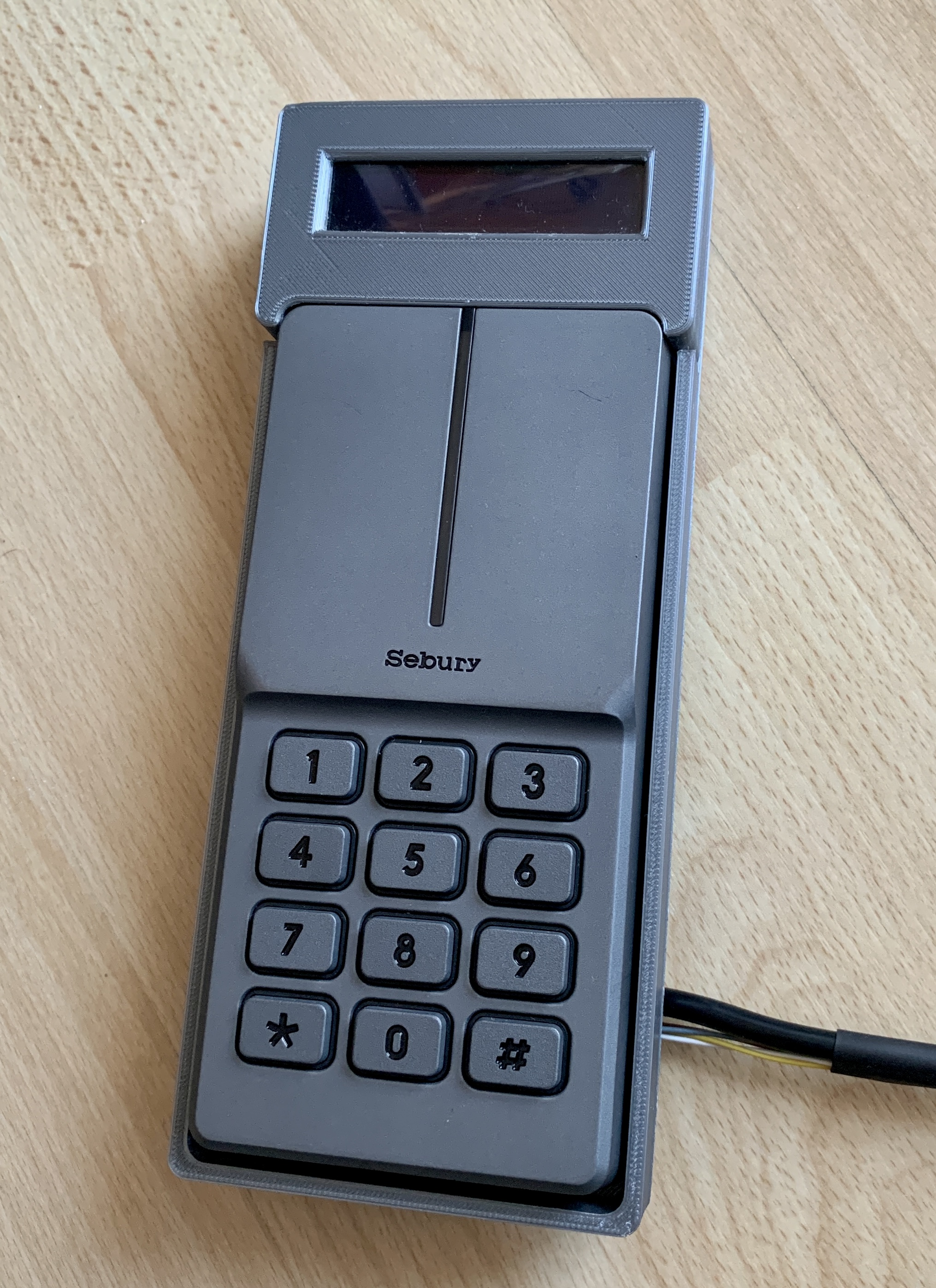

Neu November 2021: RFID-Lesegerät mit Tastatur für erweiterte Sicherheit und Funktionalität

Prozessor Typ: Arduino Mini Pro 5 Volt

Components:

• Front End Controller Arduino Mini Pro

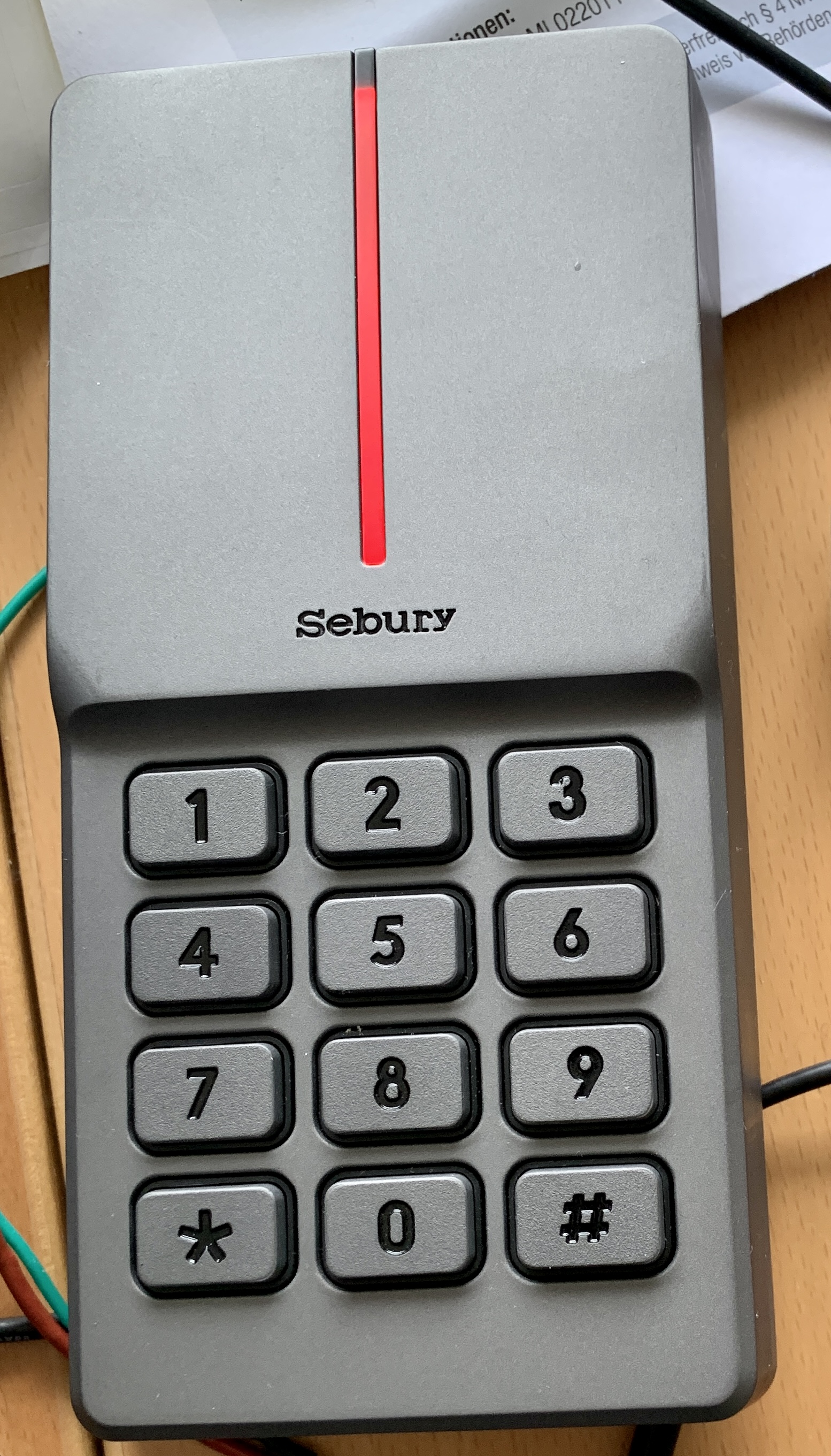

• RFID-Reader and Display Unit (mounted outside beside the entry door)


• new from Nov/Dec 2021 on:



• 12 VDC power supply with rechargeable battery (12V 20Ah)
• Raspberry Pi 3 located in Server room - connected via serial link
  running SYMCON Automation Software & MySQL Databse
• KESO MOZY eco (Motorzylinder) 12VDC

Output Signals:

• unlock KESO Motorzylinder pulse
• unlock KESO Motorzylinder permanantely
• I2C Signal to Display Unit

Input Signals:

• Wiegand Bus (D0 & D1) from RFID-Card reader
• KESO MOZY 'UNLOCK' signal
• 'ring' signal from Siedle Door Station
