Autonomous RC Car AI Project

Intelligent Lane-Keeping and Obstacle Avoidance for RC Scale Vehicles

ROS2 Humble Python 3.10+ Ubuntu 22.04 License: MIT Docker


A complete autonomous driving stack for RC-scale vehicles featuring real-time cone-based lane keeping, ToF-based obstacle avoidance, and a comprehensive software-in-the-loop simulation environment.


Watch the Demo

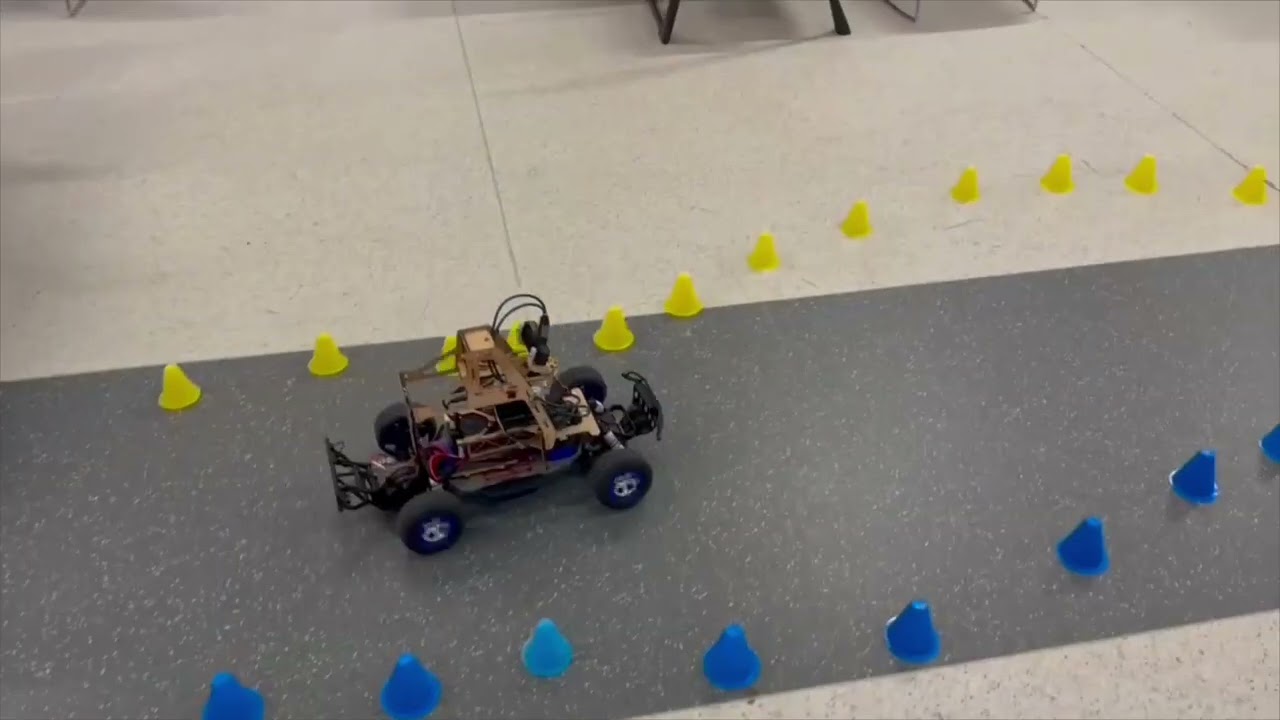

Click the image above to watch the RC car navigating different scenarios

Table of Contents

Overview

This project implements a complete autonomous driving system for a Traxxas RC car platform, developed as part of the AI for Robotics (ELEN90095) course. The system combines:

  • Real-time perception using YOLOv8-based cone detection and VL53L5CX Time-of-Flight sensors
  • Intelligent control policies for lane-keeping and obstacle avoidance with PD controllers
  • Software-in-the-loop simulation that mirrors real hardware for rapid policy development
  • Production-ready deployment with Docker containerization and web-based monitoring

The vehicle successfully navigates cone-defined tracks while dynamically avoiding obstacles, demonstrating the integration of computer vision, sensor fusion, and real-time control.

Key Features

Feature Description
Cone-Based Lane Keeping Linear regression on detected yellow/blue cones with proportional steering control
Obstacle Avoidance Multi-zone ToF sensing with velocity-aware PD controller and emergency braking
Gap Navigation Intelligent maneuvering around obstacles when sufficient clearance exists
Sensor Fusion Integration of camera, ToF, IMU, LiDAR, and wheel encoder data
Simulation Environment Complete SIL testing with realistic sensor noise models
Batch Testing Automated regression testing across multiple track scenarios
Web Interface Real-time monitoring and control via browser-based dashboard
Docker Deployment Containerized environment for reproducible builds

System Architecture

┌─────────────────────────────────────────────────────────────────────────┐
│                           PERCEPTION LAYER                               │
├─────────────────┬─────────────────┬─────────────────┬───────────────────┤
│   OAK-D Camera  │  VL53L5CX ToF   │   BNO08x IMU    │    RPLiDAR A1     │
│   (YOLOv8)      │   (4x4 Array)   │   (9-DOF)       │    (360°)         │
│   30 Hz         │   20 Hz         │   400 Hz        │    10 Hz          │
└────────┬────────┴────────┬────────┴────────┬────────┴─────────┬─────────┘
         │                 │                 │                   │
         ▼                 ▼                 ▼                   ▼
┌─────────────────────────────────────────────────────────────────────────┐
│                          ROS2 MESSAGE LAYER                              │
│  /cone_points    /tof_sensor    /imu_sensor    /scan    /wheel_speed    │
└─────────────────────────────────┬───────────────────────────────────────┘
                                  │
                                  ▼
┌─────────────────────────────────────────────────────────────────────────┐
│                           POLICY NODE                                    │
│  ┌─────────────────┐  ┌─────────────────┐  ┌─────────────────┐         │
│  │  Lane Keeping   │  │    Obstacle     │  │  Gap Navigation │         │
│  │  (Cone Fitting) │  │   Avoidance     │  │   (Maneuvering) │         │
│  │                 │  │   (PD Control)  │  │                 │         │
│  └────────┬────────┘  └────────┬────────┘  └────────┬────────┘         │
│           └────────────────────┼────────────────────┘                   │
│                                ▼                                         │
│                    FSM State Machine                                     │
│           (IDLE → ZERO → POLICY_ACTIVE)                                 │
└─────────────────────────────────┬───────────────────────────────────────┘
                                  │
                                  ▼
┌─────────────────────────────────────────────────────────────────────────┐
│                          ACTUATION LAYER                                 │
│            /esc_and_steering_set_point_percent_action                   │
├─────────────────────────────────┬───────────────────────────────────────┤
│          ESC Motor              │          Steering Servo               │
│        [-100%, +100%]           │         [-100%, +100%]                │
└─────────────────────────────────┴───────────────────────────────────────┘

Hardware Platform

Vehicle Base

  • Platform: Traxxas RC Car (1:10 scale)
  • Wheelbase: 287mm
  • Track Width: 235mm
  • Max Speed: ~3.0 m/s
  • Steering Angle: ±30°

Compute Stack

Component Role
Raspberry Pi 4 Main compute, ROS2 nodes
RP2040 Pico #1 IMU interface (BNO08x)
RP2040 Pico #2 Encoder & RC switch monitoring

Custom PCBs

  • AI4R-PIHAT: Raspberry Pi HAT for sensor/actuator routing
  • AI4R-SENSORPCB: Centralized sensor breakout board

Sensor Suite

Sensor Model Purpose Key Specs
Camera OAK-D Cone detection (YOLOv8) 120° FOV, 30 Hz, 0.5-10m range
ToF Array VL53L5CX Obstacle detection 4×4 zones, 45° FOV, 20 Hz, ±5mm accuracy
IMU BNO08x Orientation & acceleration 9-DOF, 400 Hz, auto-calibration
LiDAR RPLiDAR A1 Environment mapping 360°, 10 Hz, 0.15-12m range
Encoder Hall Effect Speed estimation 16.32 ticks/rev, period-based

Control Policies

Lane Keeping Policy

The lane-keeping system uses computer vision to detect yellow (left) and blue (right) cones, fitting linear trajectories to determine the road centerline.

# Simplified lane-keeping logic
if yellow_cones and blue_cones:
    centerline = (yellow_fit + blue_fit) / 2
elif yellow_cones:
    centerline = yellow_fit - ROAD_WIDTH/2
elif blue_cones:
    centerline = blue_fit + ROAD_WIDTH/2

lateral_error = evaluate_centerline(look_ahead_distance)
steering = -Kp * lateral_error

Key Parameters:

  • ROAD_WIDTH: 1000mm
  • LOOK_AHEAD_DISTANCE: 1000mm
  • Kp_STEER: 80.0

Obstacle Avoidance Policy

A velocity-aware PD controller monitors the ToF sensor array for obstacles, implementing graduated braking and emergency stop capabilities.

┌─────────────────────────────────────────────────────────┐
│                    ToF 4×4 Grid                         │
│  ┌───┬───┬───┬───┐                                      │
│  │ 0 │ 1 │ 2 │ 3 │  ← Zones 4-11 used for detection    │
│  ├───┼───┼───┼───┤                                      │
│  │ 4 │ 5 │ 6 │ 7 │  ← Center zones for forward sensing │
│  ├───┼───┼───┼───┤                                      │
│  │ 8 │ 9 │10 │11 │  ← Center zones for forward sensing │
│  ├───┼───┼───┼───┤                                      │
│  │12 │13 │14 │15 │                                      │
│  └───┴───┴───┴───┘                                      │
└─────────────────────────────────────────────────────────┘

Control Strategy:

  • P (Proportional): Responds to distance error from target
  • D (Derivative): Responds to rate of approach
  • Emergency Override: Hard brake if distance < 0.8m

Key Parameters:

  • BASE_TARGET_DISTANCE: 1.2m
  • EMERGENCY_BRAKE_DISTANCE: 0.8m
  • Kp_OBSTACLE: 80.0
  • Kd_OBSTACLE: 40.0

Gap Navigation (Maneuvering)

When an obstacle is detected but sufficient clearance exists on one side, the system calculates navigable gaps and steers around the obstacle.

# Gap calculation
gap_on_left = |obstacle_y - yellow_cones_y| - obstacle_width/2
gap_on_right = |obstacle_y - blue_cones_y| - obstacle_width/2

if max(gap_on_left, gap_on_right) >= MIN_GAP_WIDTH:
    steer_toward_larger_gap()
else:
    apply_pd_braking()

Key Parameters:

  • MIN_GAP_WIDTH: 0.35m
  • MANEUVER_DISTANCE_THRESHOLD: 1.6m
  • STEERING_BIAS_GAIN: 80.0

Simulation Framework

The project includes a comprehensive Software-in-the-Loop (SIL) simulation environment that publishes identical ROS2 topics as the real hardware, enabling rapid policy development and testing.

Features

  • Identical Interface: Same topics and message types as hardware
  • Realistic Sensor Models: Gaussian noise, dropout, detection probability
  • Vehicle Dynamics: Bicycle model with tire slip and motor lag
  • Performance Metrics: Automatic scoring and analysis
  • Batch Testing: Run multiple scenarios automatically
  • Video Recording: Auto-generated MP4 visualizations

Available Test Scenarios

Scenario Description
simple_straight.yaml Baseline straight track
s_curve.yaml Two connected curves (20m)
s_curve_tight.yaml Tighter radius curves
obstacle_course.yaml Multiple obstacles
obstacle_goldilocks.yaml Single obstacle at optimal detection distance
obstacle_immediate_wall.yaml Emergency braking test
real_track_oct14.yaml Real measured track layout

Running Simulations

# Single scenario test
ros2 launch ai4r_pkg quick_test.launch.py \
  scenario:=obstacle_goldilocks \
  real_time_factor:=5.0

# Batch testing
ros2 run ai4r_pkg batch_tester.py \
  test/scenarios/tracks/ \
  --filter "obstacle" \
  --timeout 120

Results are saved to sim_results/ including JSON logs, performance plots, and MP4 recordings.

Getting Started

Prerequisites

  • Ubuntu 22.04 LTS
  • ROS2 Humble
  • Python 3.10+
  • Docker (optional, for containerized deployment)

Installation

1. Clone the Repository

git clone https://github.com/yourusername/Autonomous-RC-Car-AI-Project.git
cd Autonomous-RC-Car-AI-Project

2. Install ROS2 Humble

Follow the official ROS2 installation guide.

3. Build the ROS2 Workspace

cd ros2_ws

# Source ROS2
source /opt/ros/humble/setup.bash

# Install dependencies
sudo rosdep init  # Only needed once
rosdep update
rosdep install -i --from-path src --rosdistro humble -y

# Build
colcon build

# Source the workspace
source install/setup.bash

4. (Optional) Build MCU Firmware

cd mcu_ws/build
cmake .. && make
# Outputs: ai4r-sensors-rp1.uf2, ai4r-sensors-rp2.uf2

5. (Optional) Docker Deployment

cd docker
docker-compose up -d
# Access web interface at http://localhost:8080

Sensor PCB Setup

For the sensor PCB parser node to work, grant read/write access to the serial ports:

echo 'KERNEL=="ttyACM0", MODE="0666"' | sudo tee /etc/udev/rules.d/ttyACM0.rules
echo 'KERNEL=="ttyACM1", MODE="0666"' | sudo tee /etc/udev/rules.d/ttyACM1.rules
sudo udevadm control --reload-rules
sudo udevadm trigger

Usage

Launch Full System (Hardware)

ros2 launch ai4r_pkg ai4r_bringup_launch.py

Launch Individual Components

# Vehicle control only
ros2 launch ai4r_pkg traxxas_launch.py

# Sensors + cone detection
ros2 launch ai4r_pkg traxxas_imu_tof_cone_detector_launch.py

# Policy node only
ros2 launch ai4r_pkg policy_launch.py

# Camera streaming
ros2 launch ai4r_pkg camera_stream_launch.py

Manual Control

ros2 run ai4r_pkg keyboard_teleop.py

Monitor Topics

# List all topics
ros2 topic list

# View cone detections
ros2 topic echo /cone_points

# View ToF data
ros2 topic echo /tof_sensor_vl53l5cx

# Check topic frequency
ros2 topic hz /cone_points

Record Data

ros2 bag record /cone_points /tof_sensor_vl53l5cx /imu_sensor /wheel_speed_m_per_sec

Project Structure

Autonomous-RC-Car-AI-Project/
├── ros2_ws/                        # Main ROS2 workspace
│   └── src/
│       ├── ai4r_pkg/               # Core package
│       │   ├── scripts/            # Python nodes
│       │   │   ├── policy_node.py  # Main control policy
│       │   │   ├── cone_detector_node.py
│       │   │   └── models/         # YOLOv8 models
│       │   ├── src/                # C++ nodes
│       │   ├── launch/             # Launch files
│       │   ├── config/             # Parameter files
│       │   ├── drivers/            # Hardware drivers
│       │   └── test/
│       │       ├── simulation/     # SIL framework
│       │       └── scenarios/      # Test tracks (YAML)
│       └── ai4r_interfaces/        # Custom messages
│
├── mcu_ws/                         # RP2040 Pico firmware
│   ├── ai4r-sensors-rp1.cpp        # IMU interface
│   ├── ai4r-sensors-rp2.cpp        # Encoder/RC switch
│   └── [libraries]/                # BNO08x, VL53L5CX, servo
│
├── docker/                         # Docker configuration
├── web_interface/                  # Browser-based dashboard
├── pcb_files/                      # KiCAD PCB designs
├── sim_results/                    # Simulation outputs
├── real_runs/                      # Hardware run recordings
├── SIMULATION_ARCHITECTURE.md      # Detailed simulation docs
└── README.md                       # This file

Troubleshooting

Build Error: rosidl_default_generators not found

cd /path/to/repository
sudo chmod 777 -R .

ToF Sensor Not Detected

  1. Check I2C connection: i2cdetect -y 1
  2. Verify power supply (3.3V)
  3. Check sensor address conflicts

Camera Not Streaming

  1. Verify OAK-D is connected: lsusb | grep Movidius
  2. Install DepthAI: pip install depthai
  3. Check permissions: sudo usermod -aG video $USER

Contributing

Contributions are welcome! Please follow these steps:

  1. Fork the repository
  2. Create a feature branch (git checkout -b feature/amazing-feature)
  3. Commit your changes (git commit -m 'Add amazing feature')
  4. Push to the branch (git push origin feature/amazing-feature)
  5. Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE.txt file for details.

Acknowledgments

  • Course: AI for Robotics (ELEN90095)
  • Institution: University of Melbourne
  • Platform: Traxxas RC Car
  • Frameworks: ROS2 Humble, YOLOv8, Pico SDK
  • Libraries: BNO08x, VL53L5CX, DepthAI

Built with ROS2 and Python

ROS2

About
